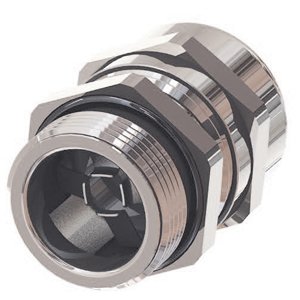

EM2-16C
Category: EMC Grounding Glands
| Thread | M16x1.5 |
| Series | CG EMC-2 EMC Grounding Gland |
| Material | Nickel Plated Brass |
| Temp Range (Permanent) | -20°C to +100°C |
| Temp Range (Intermittent) | -40°C to +150°C |
| Protection Class | IP 68 - 5 Bar |
| Flammability | V2 (according to UL 94) |
| Approvals | cURus, VDE, DNV-GL, CE, RoHS |
| Clamping Range | 0.177 - 0.394 in. (5.0 - 10.0 mm) |
| Shield Diameter (in) | 0.138 |
| Shield Diameter (mm) | 3.5 |
| Thread Diameter | 0.63 in. (16 mm) |
| Wrenching Flats | 0.787 in. (20 mm) |
| Thread Length | 0.256 in. (6.5 mm) |
| Height (in) | 1.142 |
| Height (mm) | 29 |
| Locknut P/N | LME-16 (Locknuts need to be purchased separately) |
| Torque Values | Torque Values for EMC-2 Grounding Glands |
| Installation Guide | EMC Installation Guide |
| Thread & Hole Sizes | Thread Diameters & Holes Sizes |
| Product Datasheet |
 |
