Series Number: 6107

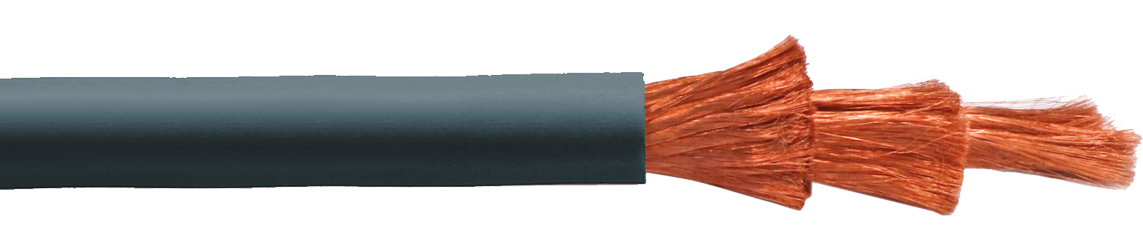

R 107 is a silicone insulated single conductor cable with special copper stranding. It is used as current and ground connection in 3rd Rail current collectors at pantographs and as earth connection at wheel sets, coupling blocks and crane mountings on rail vehicles. The wire can be laid easily in narrow spaces due to its extremely flexible construction. EN 45545-2 certified cable for use as power cable or earthing cable in electrically operated railways. Due to its silicone outer sheath, the cable can be used at temperatures up to +250°C. The insulated copper rope has other advantages in addition to very good electrical properties.
Outstanding features:
- extremely flexible
- fulfills fire protection requirements acc. to EN 45545-2 /
from 18 AWG to 8 AWG :
R15 (EL1A) HL 1 / R16 (EL1B) HL 1-2
from 6 AWG:
R15 (EL1A) HL 1-2 / R16 (EL1B) HL 1-3 - halogen-free
- heat resistant
- flexible at low temperatures
- flame retardant and self-extinguishing
- weather resistant
Approvals:
- IEC 60332-3-24
- EN 45545-2
- RoHS
