Highly robust single and multi-conductor high-voltage cables for construction and special vehicles

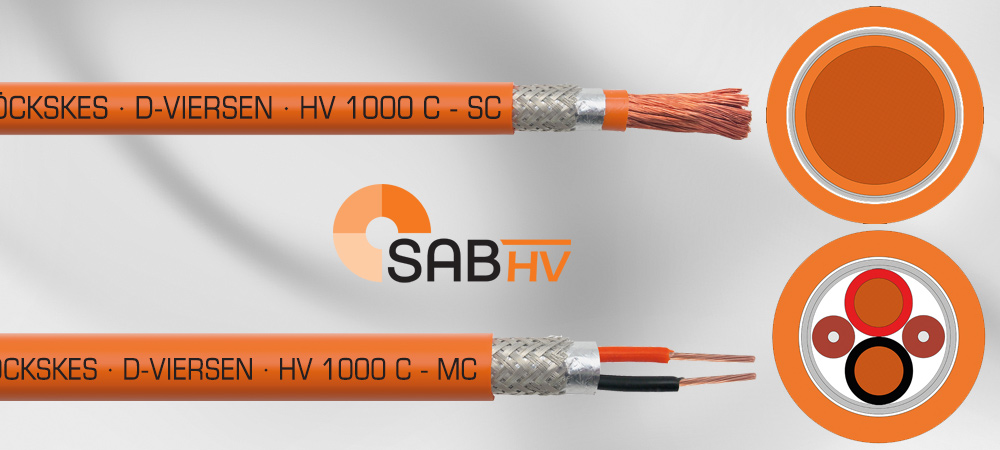

Fairfield, NJ- With the HV 1000 C series, SAB one of the world's leading manufacturers of special cables, has developed new highly robust single-conductor (SC) and multi-conductor (MC) cables for high-voltage wiring in construction, agricultural, and special vehicles.

HV 1000 C- SC: The HV single-conductor, available in eight standard dimensions with nominal cross-sections from 6 mm² to 95 mm², meets the special requirements for safety and reliability in electrically or hybrid-driven utility vehicles. The multi-conductor version is available in dimensions from 2 x 2.50 mm² to 5 x 6.00 mm². Due to its high mechanical strength and resistance to environmental influences as well as its very good oil and temperature resistance, the HV single core solution designed for nominal voltages of up to 1,000 V AC/DC is suitable, for example, for the electrical connection of inverters and electric motors.

HV 1000 C – MC: The HV multi-conductor cable is used, for example, as a connecting cable to the cabin heater, the e-compressor or the HV heat pump in electric and hybrid vehicles. The double EMC-shielded high-voltage cables with bare copper stranding and orange colored TPE-U jacket have a low-temperature resistance down to -50°C according to DIN EN 60811-506 and withstand temperatures of up to +125°C for an operating time of up to 2,000 hours. The extremely tensile, abrasion and shear resistant outer jacket allows tight bending radii and, in many cases, eliminates the need for installation with additional protective tubing. Other quality and safety features include flame-retardant and self-extinguishing material properties in accordance with IEC 60332-1-2 as well as standardized high resistance to mud, UV, ozone, and salt water. All materials are free of harmful substances and meet RoHS criteria. In addition to the standard designs, SAB also offers gauge sizes as well as jackets in other color variants on request.

For more information, contact SAB North America, 344 Kaplan Drive, Fairfield, NJ 07004; call toll-free 866-722-2974, email This email address is being protected from spambots. You need JavaScript enabled to view it. or visit www.sabcable.com

About SAB

SAB Bröckskes is a global cable manufacturer with over 75 years of experience. Each day, we ship high-quality cables and temperature measurement solutions to more than 100 countries around the world. Located in Fairfield, NJ, SAB North America is the US Headquarters servicing the needs for the North American market whether it is new construction, OEM manufacturing, or MRO requirements.
