Series Number: 3578

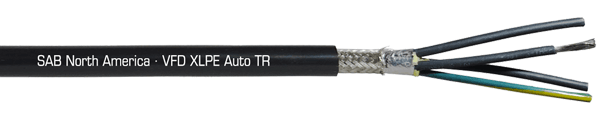

VFD XLPE Auto TR is a continuous flex shielded motor supply cable designed for adjustable speed drives and servo systems. The cores are insulated with a thicker cross linked insulation providing better heat resistance, low capacitance and better protection against corona discharge. VFD XLPE Auto TR is UL TC-ER, 600V, UL WTTC, UL flexible motor supply cable 1000V, c(UL) CIC/TC, & UL/CSAAWM approved up to 1000V and is 100% shielded with both a foil and braided shield making this cable resistant to Electromagnetic Interference (EMI) from voltage spikes, harmonics, and power distortions frequently associated with variable frequency drives.
This cable can be used both indoors and outdoors within or without conduit (exposed runs) up to any length. Its unique flame retardant jacket makes the VFD XLPE Auto TR approved for both cable tray (TC) applications as well as control and instrumentation applications. VFD XLPE Auto TR is suitable for installations in wet or dry locations, is UV resistant, and is rated for direct burial. VFD XLPE Auto TR is permitted to be used in hazardous (classified) locations Class I, Division 2 per NEC Article 501.4 (B), and is UL Type WTTC in acc. with UL standard 2277. Wind Turbine power and control cable (WTTC) is intended to be installed in cable trays or raceways within a wind turbine generator.
Outstanding Features
- Interconnection of variable frequency drive control device to variable frequency motors
- UL 90°C wet
- WTTC: UL subject 2277
- TC-ER: UL standard 1277
- UL flexible motor supply cable 1000V
- crosslinked conductors, beter for longer installations
- Oil Res I & II
- Double shield (100% shielded)
- Class 1 Div 2 per NEC Article 501.4 (B)
Approvals
- UL TC-ER
- UL AWM
- UL WTTC
- CSA AWM
- CE
- RoHS
