SAB’s HV Measuring cable can be used in the field of electric vehicle development wherever a protected measurement and application up to 1000 V DC in a high-voltage environment is required. It can also be used with high-voltage power electronics, HV batteries, e-motors, inverters, etc. The HV measuring cables are used in test benches and vehicles.

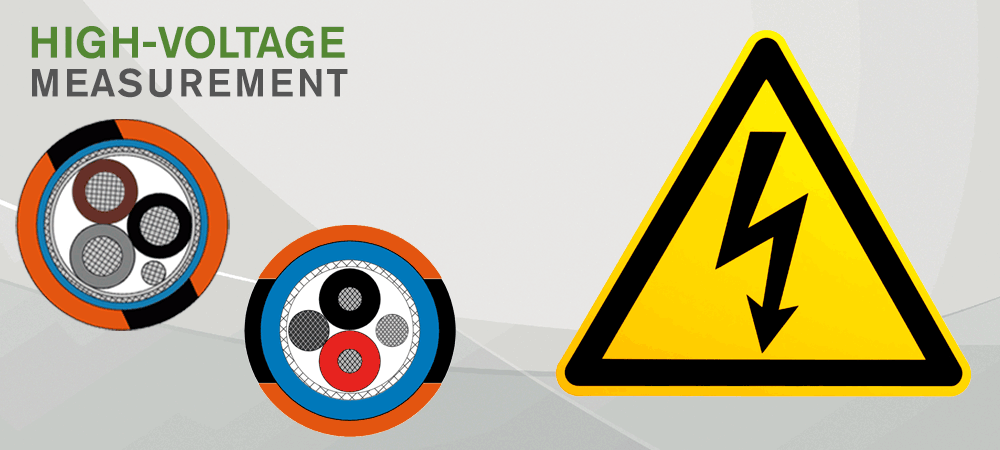

These flexible cables have a wide temperature range of -40°C up to + 150°C. A special safety feature is the blue inner jacket and the robust outer jacket. Cables in test vehicles are often exposed to extreme mechanical and abrasion stress. If the orange outer jacket is worn through, the visible blue inner jacket signals that the operational safety of the cable will not be guaranteed much longer and that the cable must be changed. The two black longitudinal stripes identify the cable clearly as a measuring cable that doesn't belong to the basic equipment of the vehicle and is used for testing purposes only.
HV Measuring Cable (DC) : High-voltage multi-conductor shielded cable for DC Voltage Measurement, scoop-proof
- Scoop-proof testing voltage: 1000 V DC over the blue inner jacket; 5000 V AC over the blue inner jacket
- Operating voltage: 1000 V DC
HV measuring cable (AC): High-voltage multi-conductor shielded cable for AC voltage measurement, scoop-proof
- Scoop-proof testing voltage: 1000 V DC over the blue inner jacket; 5000 V AC over the blue inner jacket
- Operating voltage: conductor/conductor: 1800 V DC conductor/conductor: 1000 V AC
It is of great importance that HV measuring cables are only used together with a suitable high voltage measuring equipment.
