VFD XLPE TR Tray Cables/VFD Cables

VFD cable w/ XLPE insulation, 1000 V, 105°C, UL, CSA, CE, reduced OD

Series Number: 3566

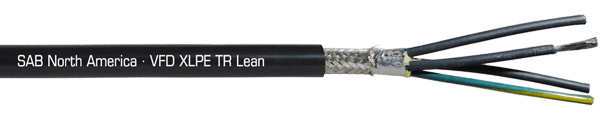

VFD XLPE TR Lean has XLPE insulation for improved capacitance and is extremely flexible and oil resistant. It has a reduced OD for easier handling and is recommended for use in installations 100 ft or less. It is designed to perform in VFD applications where increases in voltage can occur, such as spikes in harmonics, inrush current and wave re flection. VFD XLPE TR has a foil and tinned copper braid shield for 100% protection against EMI and RFI.

Get A Quote Download PDF

Cable Accessories Available

Cable Accessories

View Product Line

Outstanding Features

  • interconnection of variable frequency drive control device to variable frequency motors
  • UL 90°C wet
  • WTTC: UL subject 2277
  • TC-ER: UL standard 1277
  • UL flexible motor supply cable 1000V
  • recommended for installations up to 100ft
  • Oil Res I & II
  • double shield (100% shielded)
  • UL-TC-ER-JP (joist pull)

Approvals

  • UL TC-ER
  • UL AWM
  • UL WTTC
  • CSA CIC-TC
  • CSA AWM
  • CE
  • RoHS
