Filter Cord Grip Selection
| P/N | Type | Thread | Thread | Thread Type (male) | Thread Type (female) | Material | Color | Clamping Range (in) | Clamping Range (mm) | Locknut P/N | Outer Ø (inch) | Outer Ø (mm) | Inner Ø (inch) | Inner Ø (mm) | Shape | Average Air Flow (l/h) | Water Intrusion Pressure Bar | Fits SAB Plastic Cord Grips | Number of Holes | Hole Diameter | Product Datasheet | In Stock | Additional data | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

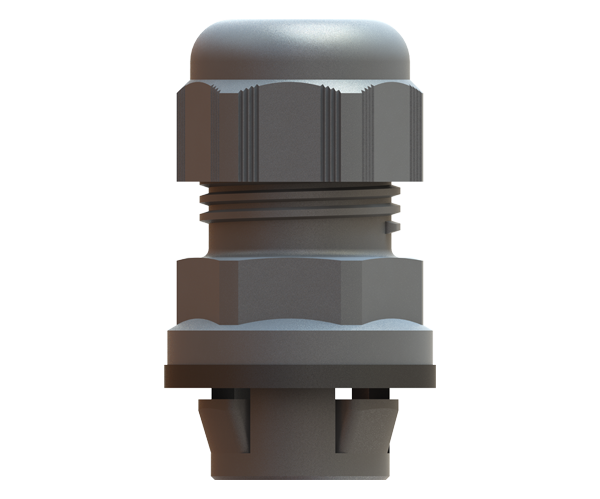

PMSG-16 |
No Thread
|
Polyamide 6
|
Gray
|
0.197 - 0.394
|
5.0 - 10.0
|
 |
|
|
||||||||||||||||||
|
PMSG-16DS |
No Thread
|
Polyamide 6
|
Gray
|
0.118 - 0.394
|
3.0 - 10.0
|
|
|
|
||||||||||||||||||
|
PMSG-20R |
No Thread
|
Polyamide 6
|
Gray
|
0.236 - 0.472
|
6.0 - 12.0
|
|
|
|
||||||||||||||||||
|
PMSG-20 |
No Thread
|
Polyamide 6
|
Gray
|
0.276 - 0.512
|
7.0 - 13.0
|
|
|
|
||||||||||||||||||
|
PMSG-20DS |
No Thread
|
Polyamide 6
|
Gray
|
0.197 - 0.472
|
5.0 - 12.0
|
|
|
|
||||||||||||||||||
|
PMSG-20CDS |
No Thread
|
Polyamide 6
|
Gray
|
0.118 - 0.512
|
3.0 - 13.0
|
|
|
|
||||||||||||||||||
|
PMSG-25 |
No Thread
|
Polyamide 6
|
Gray
|
0.433 - 0.669
|
11.0 - 17.0
|
|
|
|
||||||||||||||||||
|
PMSG-25DS |
No Thread
|
Polyamide 6
|
Gray
|
0.315 - 0.669
|
8.0 - 17.0
|
|
|
|
||||||||||||||||||
|
PMSG-32 |
No Thread
|
Polyamide 6
|
Gray
|
0.591 - 0.827
|
15.0 - 21.0
|
|
|
|
||||||||||||||||||
|
PMSG-32DS |
No Thread
|
Polyamide 6
|
Gray
|
0.433 - 0.827
|
11.0 - 21.0
|
|
|
|
||||||||||||||||||
|
PMSG-40 |
No Thread
|
Polyamide 6
|
Gray
|
0.748 - 1.102
|
19.0 - 28.0
|
|
|
|
||||||||||||||||||
|
PMSG-40DS |
No Thread
|
Polyamide 6
|
Gray
|
0.630 - 1.102
|
16.0 - 28.0
|
|
|
|
