Filter Cord Grip Selection
| P/N | Type | Thread | Thread | Thread Type (male) | Thread Type (female) | Material | Color | Clamping Range (in) | Clamping Range (mm) | Locknut P/N | Outer Ø (inch) | Outer Ø (mm) | Inner Ø (inch) | Inner Ø (mm) | Shape | Average Air Flow (l/h) | Water Intrusion Pressure Bar | Fits SAB Plastic Cord Grips | Number of Holes | Hole Diameter | Product Datasheet | In Stock | Additional data | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

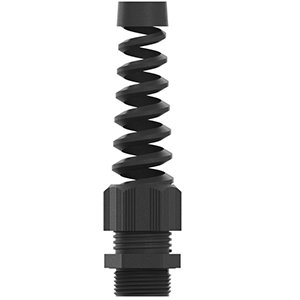

FMB-12R |
M12X1.5
|
Metric
|
Polyamide 6
|
Black
|
0.079 - 0.197
|
2.0 - 5.0
|
LMB-12 (Locknuts need to be purchased separately)
|
 |
|
|
||||||||||||||||
|
FMB-12 |
M12X1.5
|
Metric
|
Polyamide 6
|
Black
|
0.118 - 0.256
|
3.0 - 6.5
|
LMB-12 (Locknuts need to be purchased separately)
|
|
|
|
||||||||||||||||
|
FMB-16R |
M16X1.5
|
Metric
|
Polyamide 6
|
Black
|
0.118 - 0.276
|
3.0 - 7.0
|
LMB-16 (Locknuts need to be purchased separately)
|
|
|
|
||||||||||||||||
|
FMB-16 |
M16X1.5
|
Metric
|
Polyamide 6
|
Black
|
0.197 - 0.394
|
5.0 - 10.0
|
LMB-16 (Locknuts need to be purchased separately)
|
|
|
|
||||||||||||||||
|
FMB-20R |
M20X1.5
|
Metric
|
Polyamide 6
|
Black
|
0.197 - 0.354
|
5.0 - 9.0
|
LMB-20 (Locknuts need to be purchased separately)
|
|
|
|
||||||||||||||||
|
FMB-20 |
M20X1.5
|
Metric
|
Polyamide 6
|
Black
|
0.236 - 0.472
|
6.0 - 12.0
|
LMB-20 (Locknuts need to be purchased separately)
|
|
|
|
||||||||||||||||
|
FMB-20RC |
M20X1.5
|
Metric
|
Polyamide 6
|
Black
|
0.276 - 0.472
|
7.0 - 12.0
|
LMB-20 (Locknuts need to be purchased separately)
|
|
|
|
||||||||||||||||
|
FMB-20C |
M20X1.5
|
Metric
|
Polyamide 6
|
Black
|
0.394 - 0.551
|
10.0 - 14.0
|
LMB-20 (Locknuts need to be purchased separately)
|
|
|
|
||||||||||||||||
|
FMB-25R |
M25X1.5
|
Metric
|
Polyamide 6
|
Black
|
0.354 - 0.630
|
9.0 - 16.0
|
LMB-25 (Locknuts need to be purchased separately)
|
|
|
|
||||||||||||||||
|
FMB-25 |
M25X1.5
|
Metric
|
Polyamide 6
|
Black
|
0.512 - 0.709
|
13.0 - 18.0
|
LMB-25 (Locknuts need to be purchased separately)
|
|
|
|
||||||||||||||||
|
FMG-12R |
M12X1.5
|
Metric
|
Polyamide 6
|
Gray
|
0.079 - 0.197
|
2.0 - 5.0
|
LMG-12 (Locknuts need to be purchased separately)
|
|
|
|
||||||||||||||||
|
FMG-12 |
M12X1.5
|
Metric
|
Polyamide 6
|
Gray
|
0.118 - 0.256
|
3.0 - 6.5
|
LMG-12 (Locknuts need to be purchased separately)
|
|
|
|
