Selecting a Grounding Gland: CG EMC2 vs. CG EMC-4
EMC-2
- → Optimal grounding of shielded cable
- → One direction installation
- → Impact resistant
- → Suitable for the highest demands of today's technology
- → Easy installation
- → Easy handling
- → High corrosion resistance
- → Water tight
- → Strain relief
EMC-4
- → Optimal grounding of shielded cable
- → Bi-directional installation
- → Impact resistant
- → Free radial and axial movement of the cable without any damage to the braid
- → Easy installation
- → Large contact surface of the finters allowing low contact resistance
- → High contact performance under vibrating conditions
- → Water tight
- → Strain relief
Filter Cord Grip Selection
| P/N | Type | Thread | Thread | Thread Type (male) | Thread Type (female) | Material | Color | Clamping Range (in) | Clamping Range (mm) | Locknut P/N | Outer Ø (inch) | Outer Ø (mm) | Inner Ø (inch) | Inner Ø (mm) | Shape | Average Air Flow (l/h) | Water Intrusion Pressure Bar | Fits SAB Plastic Cord Grips | Number of Holes | Hole Diameter | Product Datasheet | In Stock | Additional data | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EM2-12 |
M12x1.5
|
Metric
|
Nickel Plated Brass
|
0.118 - 0.256
|
3.0 - 6.5
|
LME-12 (Locknuts need to be purchased separately)
|
 |
|
|
|||||||||||||||||
|

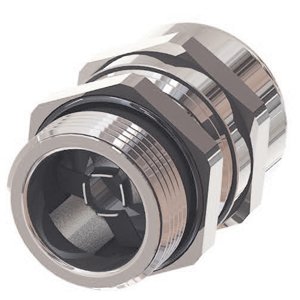

EM2-12L |
M12x1.5
|
Metric
|
Nickel Plated Brass
|
0.118 - 0.256
|
3.0 - 6.5
|
LME-12 (Locknuts need to be purchased separately)
|
|
|
|
|||||||||||||||||
|
EM2-16 |
M16x1.5
|
Metric
|
Nickel Plated Brass
|
0.158 - 0.315
|
4.0 - 8.0
|
LME-16 (Locknuts need to be purchased separately)
|
|
|
|
|||||||||||||||||
|
EM2-16L |
M16x1.5
|
Metric
|
Nickel Plated Brass
|
0.158 - 0.315
|
4.0 - 8.0
|
LME-16 (Locknuts need to be purchased separately)
|
|
|
|
|||||||||||||||||
|
EM2-16C |
M16x1.5
|
Metric
|
Nickel Plated Brass
|
0.177 - 0.394
|
5.0 - 10.0
|
LME-16 (Locknuts need to be purchased separately)
|
|
|
|
|||||||||||||||||
|
EM2-20 |
M20x1.5
|
Metric
|
Nickel Plated Brass
|
0.236 - 0.472
|
6.0 - 12.0
|
LME-20 (Locknuts need to be purchased separately)
|
|
|
|
|||||||||||||||||
|
EM2-20L |
M20x1.5
|
Metric
|
Nickel Plated Brass
|
0.236 - 0.472
|
6.0 - 12.0
|
LME-20 (Locknuts need to be purchased separately)
|
|
|
|
|||||||||||||||||
|
EM2-25 |
M25x1.5
|
Metric
|
Nickel Plated Brass
|
0.394 - 0.551
|
10.0 - 14.0
|
LME-25 (Locknuts need to be purchased separately)
|
|
|
|
|||||||||||||||||
|
EM2-25L |
M25x1.5
|
Metric
|
Nickel Plated Brass
|
0.394 - 0.551
|
10.0 - 14.0
|
LME-25 (Locknuts need to be purchased separately)
|
|
|
|
|||||||||||||||||
|
EM2-25C |
M25x1.5
|
Metric
|
Nickel Plated Brass
|
0.512 - 0.709
|
13.0 - 18.0
|
LME-25 (Locknuts need to be purchased separately)
|
|
|
|
|||||||||||||||||
|
EM2-32 |
M32x1.5
|
Metric
|
Nickel Plated Brass
|
0.512 - 0.709
|
13.0 - 18.0
|
LME-32 (Locknuts need to be purchased separately)
|
|
|
|
|||||||||||||||||
|
EM2-32L |
M32x1.5
|
Metric
|
Nickel Plated Brass
|
0.512 - 0.709
|
13.0 - 18.0
|
LME-32 (Locknuts need to be purchased separately)
|
|
|
|
