Filter Cord Grip Selection

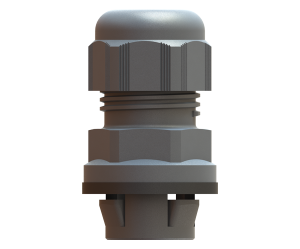

PMSG-16DS
Category: Snap-In Cable Glands
| Thread | No Thread |
| Series | CG 150- Gray |
| Description | CG 150 Gray Snap-In Glands with Double Seal |
| Material | Polyamide 6 |
| Color | Gray |
| Temp Range (Permanent) | -20°C to +100°C |
| Temp Range (Intermittent) | -30°C to +150°C |
| Protection Class | IP 68 - 5 Bar |
| Flammability | V2 (according to UL 94) |
| Approvals | cURus, DNV-GL, CE, RoHS |
| Clamping Range | 0.118 - 0.394 in. (3.0 - 10.0 mm) |
| Wrenching Flats | 0.866 in. (22 mm) |
| Height (in) | 1.752 |
| Height (mm) | 44.5 |
| Product Datasheet |
 |
