Filter Cord Grip Selection

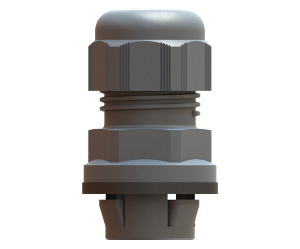

PMSG-32DS
Category: Snap-In Cable Glands
| Thread | No Thread |
| Series | CG 150- Gray |
| Description | CG 150 Gray Snap-In Glands with Double Seal |
| Material | Polyamide 6 |
| Color | Gray |
| Temp Range (Permanent) | -20°C to +100°C |
| Temp Range (Intermittent) | -30°C to +150°C |
| Protection Class | IP 68 - 5 Bar |
| Flammability | V2 (according to UL 94) |
| Approvals | cURus, DNV-GL, CE, RoHS |
| Clamping Range | 0.433 - 0.827 in. (11.0 - 21.0 mm) |
| Wrenching Flats | 1.417 in. (36 mm) |
| Height (in) | 2.028 |
| Height (mm) | 51.5 |
| Product Datasheet |
 |
