Vent Plugs and Vent Glands

Filter Cord Grip Selection

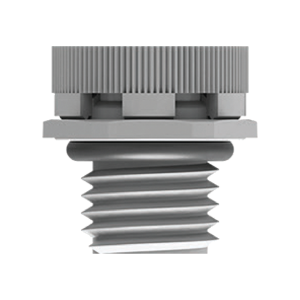

VPG-06

Print
Type Vent Plugs
Thread M20x1.5
Material Polyamide 6
Color Gray
Temp Range (Permanent) -20°C to +100°C
Temp Range (Intermittent) -30°C to +150°C
Protection Class IP 67/68 (for water intrusion pressure oil bar)
Approvals CE
Thread Diameter 0.787 in (20 mm)
Thread Length 0.394 in (10 mm)
Height (mm) 11.7
Outer Ø (mm) 26
Average Air Flow (l/h) 42
Water Intrusion Pressure Bar 0.9
Hole Diameter 20.5
