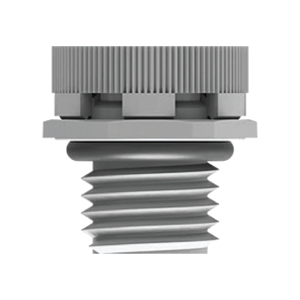

VPG-03

Print
Type Vent Plugs
Thread Quick Fit
Material Polyamide 6
Color Gray
Temp Range (Permanent) -20°C to +100°C
Temp Range (Intermittent) -30°C to +150°C
Protection Class IP 67/68 (for water intrusion pressure oil bar)
Approvals CE
Thread Diameter 0.217 in (5.5 mm)
Thread Length 0.295 in (7.5 mm)
Height (mm) 9.3
Outer Ø (mm) 17
Average Air Flow (l/h) 25
Water Intrusion Pressure Bar 0.5
Hole Diameter 6.4
