MMF-32R
Category: Metal Flex Cable Glands
| Thread | M32X1.5 |
| Series | CG 325 Metric |

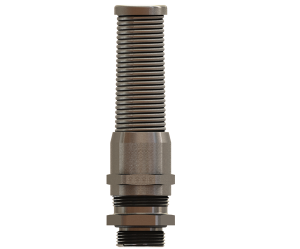

| Description | CG 325 metal flex gland with spiral top for bending support, M32 with reducer bushing |
| Material | Nickel Plated Brass |
| Temp Range (Permanent) | -20°C to +100°C |
| Temp Range (Intermittent) | -40°C to +150°C |
| Protection Class | IP 68 - 5 Bar |
| Flammability | V2 (according to UL 94) |
| Clamping Range | 0.354 - 0.63 in. (9.0 - 16.0 mm) |
| Thread Diameter | 1.26 in. (32 mm) |
| Wrenching Flats | 1.181 in. (30 mm) Cap/ 1.339 in. (34 mm) Body |
| Thread Length | 0.354 in. (9 mm) |
| Height (in) | 3.78 |
| Height (mm) | 96 |
| Locknut P/N | LMM-12 (Locknuts need to be purchased separately) |
| Torque Values | Torque Values for Metal Glands |
| Thread & Hole Sizes | Thread Diameters & Holes Sizes |
