MMF-20C
Category: Metal Flex Cable Glands
| Thread | M20X1.5 |
| Series | CG 325 Metric |

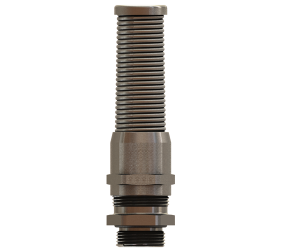

| Description | CG 325 metal flex gland with spiral top for bending support, M20 with larger clamping range |
| Material | Nickel Plated Brass |
| Temp Range (Permanent) | -20°C to +100°C |
| Temp Range (Intermittent) | -40°C to +150°C |
| Protection Class | IP 68 - 5 Bar |
| Flammability | V2 (according to UL 94) |
| Clamping Range | 0.394 - 0.551 in. (10.0 - 14.0 mm) |
| Thread Diameter | 0.787 in. (20 mm) |
| Wrenching Flats | 0.945 in. (24 mm) Cap/ 0.945 in. (24 mm) Body |
| Thread Length | 0.315 in. (8 mm) |
| Height (in) | 3.602 |
| Height (mm) | 91.5 |
| Locknut P/N | LMM-12 (Locknuts need to be purchased separately) |
| Torque Values | Torque Values for Metal Glands |
| Thread & Hole Sizes | Thread Diameters & Holes Sizes |
| Product Datasheet |
 |
