Filter Cord Grip Selection

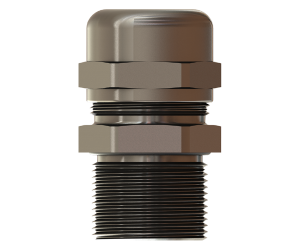

EXMM-32C-TL9
Category: Explosion Proof Cable Glands
| Type | EX e |
| Thread | M32X1.5 |
| Series | EX 300 Metric EX e |
| Description | EX 300 Nickel Plated Brass EX e glands, M32 with larger clamping range |
| Material | Nickel Plated Brass |
| Temp Range (Permanent) | -40°C to +80°C |
| Approvals | UL, ATEX, IECEx, EAC, IN Metro, DNV |
| Clamping Range | 0.866 - 1.102 in. (22.0 - 28.0 mm) |
| Thread Diameter | 1.26 in. (32 mm) |
| Wrenching Flats | 1.772 in. (45 mm) Cap / 1.772 in. (45 mm) Body |
| Thread Length | 0.354 in. (9 mm) |
| Height (in) | 1.673 |
| Height (mm) | 42.5 |
| Product Datasheet |
 |
