Filter Cord Grip Selection

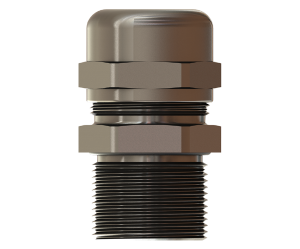

EXMM-20C-TL9
Category: Explosion Proof Cable Glands
| Type | EX e |
| Thread | M20X1.5 |
| Series | EX 300 Metric EX e |
| Description | EX 300 Nickel Plated Brass EX e glands, M20 with larger clamping range |
| Material | Nickel Plated Brass |
| Temp Range (Permanent) | -40°C to +80°C |
| Approvals | UL, ATEX, IECEx, EAC, IN Metro, DNV |
| Clamping Range | 0.394 - 0.63 in. (10.0 - 16.0 mm) |
| Thread Diameter | 0.787 in. (20 mm) |
| Wrenching Flats | 1.102 in. (28 mm) Cap / 1.102 in. (28 mm) Body |
| Thread Length | 0.354 in. (9 mm) |
| Height (in) | 1.26 |
| Height (mm) | 32 |
| Product Datasheet |
 |
