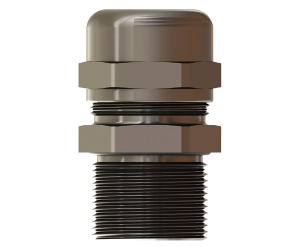

EXMM-20
Category: Explosion Proof Cable Glands
| Type | EX d |
| Thread | M20X1.5 |
| Series | EX 300 Metric EX d |
| Description | EX 300 Nickel Plated Brass EX d glands, M20 |
| Material | Nickel Plated Brass |
| Temp Range (Permanent) | -40°C to +80°C |
| Approvals | UL, ATEX, IECEx, EAC, IN Metro, DNV |
| Clamping Range | 0.157 - 0.472 in. (4.0 - 12.0 mm) |
| Thread Diameter | 0.787 in. (20 mm) |
| Wrenching Flats | 0.866 in. (22 mm) Cap/ 0.866 in. (22 mm) Body |
| Thread Length | 0.63 in. (16 mm) |
| Height (in) | 1.142 |
| Height (mm) | 29.0 |
