Filter Cord Grip Selection

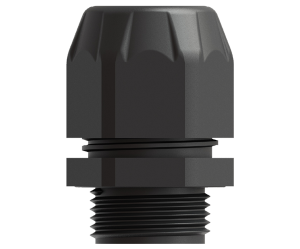

EXMH-40C
Category: Explosion Proof Cable Glands
| Type | EX e |
| Thread | M40X1.5 |
| Series | EX 150 Metric |
| Description | EX 150 High Impact Polyamide EX e gland, M40 with larger clamping range |
| Material | Polyamide 6 |
| Color | Black |
| Temp Range (Permanent) | -40°C to +70°C |
| Approvals | ATEX, IECEx, EAC, IN Metro, DNV |
| Clamping Range | 0.827 - 1.26 in. (21.0 - 32.0 mm) |
| Thread Diameter | 1.575 in. (40 mm) |
| Wrenching Flats | 2.087 in. (53 mm) Cap/ 2.087 in. (53 mm) Body |
| Thread Length | 0.709 in. (18 mm) |
| Height (in) | 2.28 |
| Height (mm) | 57.9 |
| Product Datasheet |
 |
