Filter Cord Grip Selection

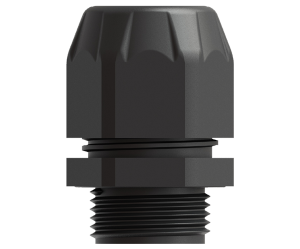

EXMH-25C
Category: Explosion Proof Cable Glands
| Type | EX e |
| Thread | M25X1.5 |
| Series | EX 150 Metric |
| Description | EX 150 High Impact Polyamide EX e gland, M25 with larger clamping range |
| Material | Polyamide 6 |
| Color | Black |
| Temp Range (Permanent) | -40°C to +70°C |
| Approvals | ATEX, IECEx, EAC, IN Metro, DNV |
| Clamping Range | 0.472 - 0.669 in. (12.0 - 17.0 mm) |
| Thread Diameter | 0.984 in. (25 mm) |
| Wrenching Flats | 1.142 in. (29 mm) Cap/ 1.142 in. (29 mm) Body |
| Thread Length | 0.591 in. (15 mm) |
| Height (in) | 1.661 |
| Height (mm) | 42.2 |
| Product Datasheet |
 |
