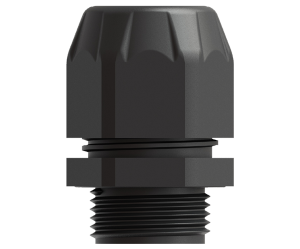

EXMH-20CL
Category: Explosion Proof Cable Glands
| Type | EX e |
| Thread | M20X1.5 |
| Series | EX 150 Metric |
| Description | EX 150 High Impact Polyamide EX e gland, M20 with larger clamping range and longer threads |
| Material | Polyamide 6 |
| Color | Black |
| Temp Range (Permanent) | -40°C to +70°C |
| Approvals | ATEX, IECEx, EAC, IN Metro, DNV |
| Clamping Range | 0.315 - 0.551 in. (8.0 - 14.0 mm) |
| Thread Diameter | 0.787 in. (20 mm) |
| Wrenching Flats | 1.063 in. (27 mm) Cap/ 1.063 in. (27 mm) Body |
| Thread Length | 0.591 in. (15 mm) |
| Height (in) | 1.457 |
| Height (mm) | 37 |
