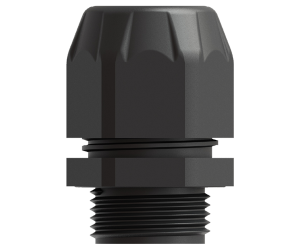

EXMH-16C
Category: Explosion Proof Cable Glands
| Type | EX e |
| Thread | M16X1.5 |
| Series | EX 150 Metric |
| Description | EX 150 High Impact Polyamide EX e gland, M16 with larger clamping range |
| Material | Polyamide 6 |
| Color | Black |
| Temp Range (Permanent) | -40°C to +70°C |
| Approvals | ATEX, IECEx, EAC, IN Metro, DNV |
| Clamping Range | 0.157 - 0.394 in. (4.0 - 10.0 mm) |
| Thread Diameter | 0.63 in. (16 mm) |
| Wrenching Flats | 0.866 in. (22 mm) Cap/ 0.866 in. (22 mm) Body |
| Thread Length | 0.394 in. (10 mm) |
| Height (in) | 1.465 |
| Height (mm) | 37.2 |
