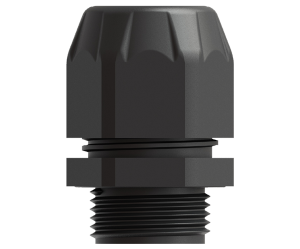

EXMH-12R
Category: Explosion Proof Cable Glands
| Type | EX e |
| Thread | M12x1.5 |
| Series | EX 150 Metric |
| Description | EX 150 High Impact Polyamide EX e gland, M12 with reducer bushing |
| Material | Polyamide 6 |
| Color | Black |
| Temp Range (Permanent) | -40°C to +70°C |
| Approvals | ATEX, IECEx, EAC, IN Metro, DNV |
| Clamping Range | 0.118 - 0.256 in. (3.0 - 6.5 mm) |
| Thread Diameter | 0.472 in. (12 mm) |
| Wrenching Flats | 0.591 in. (15 mm) Cap/ 0.591 in. (15 mm) Body |
| Thread Length | 0.394 in. (10 mm) |
| Height (in) | 1.193 |
| Height (mm) | 30.3 |
