VFD GRD KIT-14-1

Category: VFD Termination Kits

Description	VFD Termination Kit for 14 AWG to 1 AWG cable
Description	VFD Termination Kits are used to ground the shield of VFD cables to a metal enclosure. It is an effective way to remove noise associated with VFD motors and drives. Improve the effectiveness by also using a SAB EMC grounding gland where the cable enters the enclosure.

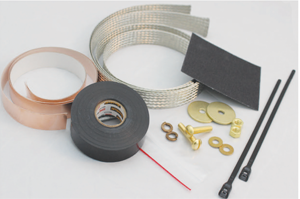

Kit Contents	1/4" flat Tinned copper braid 2 x 3ft 3/4" Copper tape 2 x 1ft Bolt assembly: 1 bag brass bolt 1/4"-20 x 1-1/4" 2 pcs brass nut 1/4"-20 2 pcs bronze locking washer 1/4"-20 2 pcs brass washer 1/4"-20 x 9/16" OD 2 pcs brass washer 1/4"-20 x 1 1/4" OD 2 pcs Rubber splicing tape 1 roll Low profile tie wrap 7" 2 pcs Metal sand paper 3" x 3" 1 pc Alcohol wipes 2 pcs
Product Datasheet
