Filter Cord Grip Selection

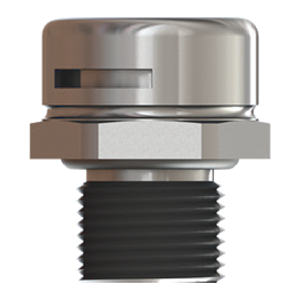

VPM-04
Category: Vent Plugs and Vent Glands
| Type | Vent Plugs |
| Thread | PG 7 |
| Series | VP Vent Plug Metal- Style C |
| Material | Stainless Steel |
| Temp Range (Permanent) | -20°C to +100°C |
| Temp Range (Intermittent) | -30°C to +150°C |
| Protection Class | IP 67/68 (for water intrusion pressure oil bar) |
| Approvals | cURus |
| Thread Diameter | 0.492 in (12.5 mm) |
| Thread Length | 0.413 in (10.5 mm) |
| Height (mm) | 11 |
| Outer Ø (mm) | 18.8 |
| Average Air Flow (l/h) | 16 |
| Water Intrusion Pressure Bar | 0.9 |
| Product Datasheet |
 |
