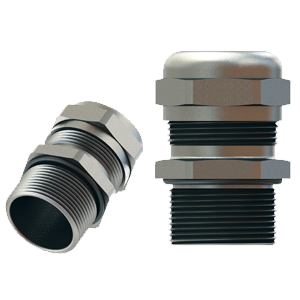

SP3-48RL
Category: Stainless Steel Cable Glands
| Thread | PG 48 |
| Series | CG 350 PG |
| Description | with reducer bushing & longer threads |
| Material | Stainless Steel 303 |
| Temp Range (Permanent) | -20°C to +100°C |
| Temp Range (Intermittent) | -40°C to +150°C |
| Protection Class | IP 68 - 5 Bar |
| Flammability | V2 (according to UL 94) |
| Approvals | DNV-GL, CE, RoHS |
| Clamping Range | 1.142 - 1.378 in. (29.0 - 35.0 mm) |
| Thread Diameter | 2.335 in (59.3 mm) |
| Wrenching Flats | 2.559 in (65 mm) |
| Thread Length | 0.709 in. (18 mm) |
| Height (in) | 2.146 |
| Height (mm) | 54.5 |
| Locknut P/N | LPM-48 (Locknuts need to be purchased separately) |
| Torque Values | Torque Values for Metal Glands |
| Thread & Hole Sizes | Thread Diameters & Holes Sizes |
