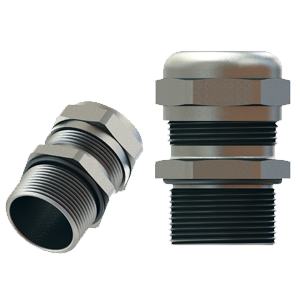

SN3-3/4R
Category: Stainless Steel Cable Glands
| Thread | NPT 3/4" |
| Series | CG 350 NPT |
| Description | with reducer bushing |
| Material | Stainless Steel 303 |
| Temp Range (Permanent) | -20°C to +100°C |
| Temp Range (Intermittent) | -40°C to +150°C |
| Protection Class | IP 68 - 5 Bar |
| Flammability | V2 (according to UL 94) |
| Approvals | DNV-GL, CE, RoHS |
| Clamping Range | 0.354 - 0.630 in. (9.0 - 16.0 mm) |
| Thread Diameter | 1.050 in (26.7 mm) |
| Wrenching Flats | 1.181 in (30 mm) |
| Thread Length | 0.512 in (13 mm) |
| Height (in) | 1.496 |
| Height (mm) | 38 |
| Locknut P/N | LNM-3-4 (Locknuts need to be purchased separately) |
| Torque Values | Torque Values for Metal Glands |
| Thread & Hole Sizes | Thread Diameters & Holes Sizes |
