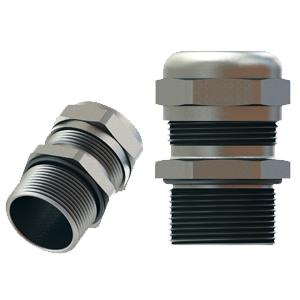

SN3-1
Category: Stainless Steel Cable Glands
| Thread | NPT 1" |
| Series | CG 350 NPT |
| Material | Stainless Steel 303 |
| Temp Range (Permanent) | -20°C to +100°C |
| Temp Range (Intermittent) | -40°C to +150°C |
| Protection Class | IP 68 - 5 Bar |
| Flammability | V2 (according to UL 94) |
| Approvals | cULus, DNV-GL, CE, RoHS |
| Clamping Range | 0.709 - 0.984 in. (18.0 - 25.0 mm) |
| Thread Diameter | 1.315 in (33.4 mm) |
| Wrenching Flats | 1.614 in. (41 mm) |
| Thread Length | 0.512 in (13 mm) |
| Height (in) | 1.791 |
| Height (mm) | 45.5 |
| Locknut P/N | LNM-1 (Locknuts need to be purchased separately) |
| Torque Values | Torque Values for Metal Glands |
| Thread & Hole Sizes | Thread Diameters & Holes Sizes |
| Product Datasheet |
 |
