Filter Cord Grip Selection

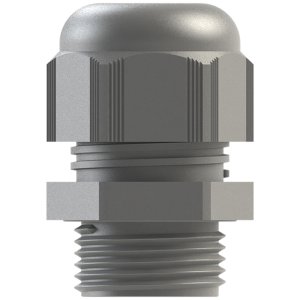

PMG-75
Category: Plastic Cable Glands
| Thread | M75X2.0 |
| Series | CG 100 Metric |
| Description | with reducer bushing |
| Material | Polyamide 6 |
| Color | Gray |
| Temp Range (Permanent) | -20°C to +100°C |
| Temp Range (Intermittent) | -30°C to +150°C |
| Protection Class | IP 68 - 5 Bar |
| Flammability | V2 (according to UL 94) |
| Approvals | cURus, cCSAus, VDE, DNV-GL, CE, RoHS |
| Clamping Range | 1.890 - 2.165 in. (19.0 - 28.0 mm) |
| Thread Diameter | 2.953 in. (75 mm) |
| Wrenching Flats | 3.15 in. (80 mm) |
| Thread Length | 0.984 in. (25 mm) |
| Height (in) | 1.878 |
| Torque Values | Torque Values for Polyamide Glands |
| Thread & Hole Sizes | Thread Diameters & Holes Sizes |
| Product Datasheet |
 |
