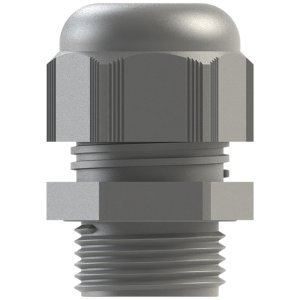

PMG-25C
Category: Plastic Cable Glands
| Thread | M25X1.5 |
| Series | CG 100 Metric |
| Material | Polyamide 6 |
| Color | Gray |
| Temp Range (Permanent) | -20°C to +100°C |
| Temp Range (Intermittent) | -30°C to +150°C |
| Protection Class | IP 68 - 5 Bar |
| Flammability | V2 (according to UL 94) |
| Approvals | cURus, cCSAus, VDE, DNV-GL, CE, RoHS |
| Clamping Range | 0.433 - 0.669 in. (11.0 - 17.0 mm) |
| Thread Diameter | 0.984 in (25 mm) |
| Wrenching Flats | 1.142 in. (29 mm) |
| Thread Length | 0.315 in. (8 mm) |
| Height (in) | 1.484 |
| Locknut P/N | LMG-25 (Included) |
| Torque Values | Torque Values for Polyamide Glands |
| Thread & Hole Sizes | Thread Diameters & Holes Sizes |
