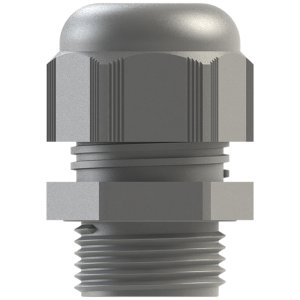

PMG-16RCL
Category: Plastic Cable Glands
| Thread | M16X1.5 |
| Series | CG 100 Metric |
| Description | with reducer bushing and longer threads |
| Material | Polyamide 6 |
| Color | Gray |
| Temp Range (Permanent) | -20°C to +100°C |
| Temp Range (Intermittent) | -30°C to +150°C |
| Protection Class | IP 68 - 5 Bar |
| Flammability | V2 (according to UL 94) |
| Approvals | VDE, DNV-GL, CE, RoHS |
| Clamping Range | 0.079 - 0.236 in. (2.0 - 6.0 mm) |
| Thread Diameter | 0.63 in (16 mm) |
| Wrenching Flats | 0.748 in. (19 mm) |
| Thread Length | 0.591 in (15 mm) |
| Height (in) | 1.079 |
| Height (mm) | 27.4 |
| Locknut P/N | LMG-16 (Included) |
| Torque Values | Torque Values for Polyamide Glands |
| Thread & Hole Sizes | Thread Diameters & Holes Sizes |
