Filter Cord Grip Selection

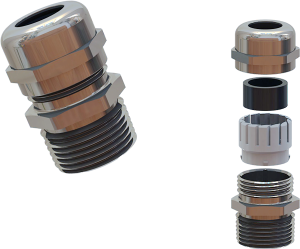

MMS-32RL
Category: Metal Cable Glands
| Thread | M32X1.5 |
| Series | CG 300 Metric |
| Description | with reducer bushing & longer threads |
| Material | Nickel Plated Brass |
| Temp Range (Permanent) | -20°C to +100°C |
| Temp Range (Intermittent) | -40°C to +150°C |
| Protection Class | IP 68 - 5 Bar |
| Flammability | V2 (according to UL 94) |
| Approvals | cULus, VDE, DNV-GL, CE |
| Clamping Range | 0.354 - 0.63 in. (9.0 - 16.0 mm) |
| Thread Diameter | 1.26 in. (32 mm) |
| Wrenching Flats | 1.181 in. (30 mm) |
| Thread Length | 0.591 in. (15 mm) |
| Height (in) | 1.378 |
| Height (mm) | 35.0012 |
| Locknut P/N | LMM-32 (Locknuts need to be purchased separately) |
| Torque Values | Torque Values for Metal Glands |
| Thread & Hole Sizes | Thread Diameters & Holes Sizes |
