Filter Cord Grip Selection

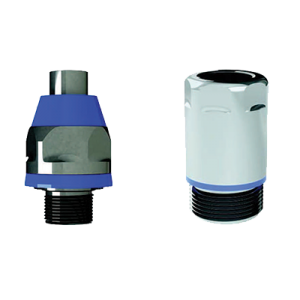

HCGN-1/4
Category: Hygienic Glands
| Type | Hygienic Cable Gland |
| Thread | NPT 1/4” |
| Series | CG Clean Hygienic Cable Gland |
| Material | Nickel Plated Brass |
| Temp Range (Permanent) | -20°C to +100°C |
| Temp Range (Intermittent) | -40°C to +150°C |
| Protection Class | IP 68 (5 bar, 30 min.) acc. to EN 60529; IP 69; IP 68 |
| Approvals | UL, VDE, DNV-GL, NSF, CE |
| Clamping Range | .118 - .256 in. ( 3.0 - 6.5 mm) |
| Wrenching Flats | 0.709 in (0.709 mm) |
| Thread Length | 0.394 in (10 mm) |
| Height (mm) | 23.5 |
| Locknut P/N | Locknut included |
| Outer Ø (mm) | 20.2 |
| Product Datasheet |
 |
