Category: Hygienic Glands

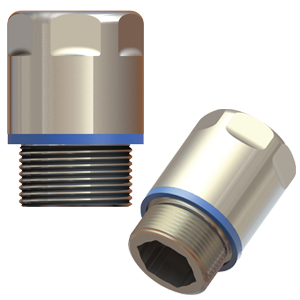

Type Hygienic Cable Gland
Thread M25x1.5
Series CG Clean Hygienic Cable Gland
Material Nickel Plated Brass
Temp Range (Permanent) -20°C to +100°C
Temp Range (Intermittent) -40°C to +150°C
Protection Class IP 68 (5 bar, 30 min.) acc. to EN 60529; IP 69; IP 68
Approvals UL, VDE, DNV-GL, NSF, CE
Clamping Range .472 - .669 in. (12.0 - 17.0 mm)
Wrenching Flats 1.102 in (28 mm)
Thread Length 0.394 in (10 mm)
Height (mm) 32.5
Outer Ø (mm) 30.1
