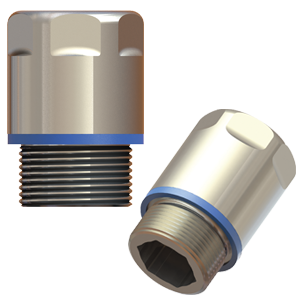

HCGM-12
Category: Hygienic Glands
| Type | Hygienic Cable Gland |
| Thread | M12x1.5 |
| Series | CG Clean Hygienic Cable Gland |
| Material | Nickel Plated Brass |
| Temp Range (Permanent) | -20°C to +100°C |
| Temp Range (Intermittent) | -40°C to +150°C |
| Protection Class | IP 68 (5 bar, 30 min.) acc. to EN 60529; IP 69; IP 68 |
| Approvals | UL, VDE, DNV-GL, NSF, CE |
| Clamping Range | .118 - .256 in. (3.0 - 6.5 mm) |
| Wrenching Flats | 0.551 in (14 mm) |
| Thread Length | 0.236 in (6 mm) |
| Height (mm) | 23.5 |
| Locknut P/N | LMM-12 (Locknut included) |
| Outer Ø (mm) | 15.6 |
