Filter Cord Grip Selection

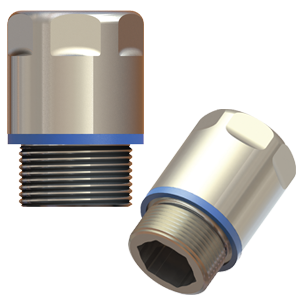

HCGE-3/8
Category: Hygienic Glands
| Type | Hygienic Cable Gland |
| Thread | NPT 3/8” |
| Series | CG Clean Hygienic Cable Gland |
| Material | EMC Nickel Plated Brass |
| Temp Range (Permanent) | -20°C to +100°C |
| Temp Range (Intermittent) | -40°C to +150°C |
| Protection Class | IP 68 (5 bar, 30 min.) acc. to EN 60529; IP 69; IP 68 |
| Approvals | UL, VDE, DNV-GL, NSF, CE |
| Clamping Range | .197 - .394 in. ( 5.0 - 10.0 mm) |
| Wrenching Flats | 0.866 in (0.866 mm) |
| Thread Length | 0.394 in (10 mm) |
| Height (mm) | 33 |
| Locknut P/N | LNE-3-8 (Locknut included) |
| Outer Ø (mm) | 24.1 |
| Product Datasheet |
 |
