Filter Cord Grip Selection

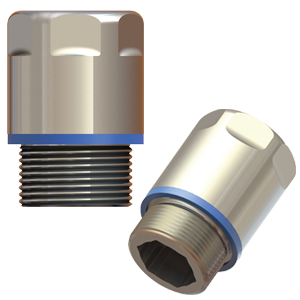

HCGE-3/4
Category: Hygienic Glands
| Type | Hygienic Cable Gland |
| Thread | NPT 3/4” |
| Series | CG Clean Hygienic Cable Gland |
| Material | EMC Nickel Plated Brass |
| Temp Range (Permanent) | -20°C to +100°C |
| Temp Range (Intermittent) | -40°C to +150°C |
| Protection Class | IP 68 (5 bar, 30 min.) acc. to EN 60529; IP 69; IP 68 |
| Approvals | UL, VDE, DNV-GL, NSF, CE |
| Clamping Range | .472 - .669 in. (12.0 - 17.0 mm) |
| Wrenching Flats | 1.378 in (1.378 mm) |
| Thread Length | 0.472 in (12 mm) |
| Height (mm) | 41.5 |
| Locknut P/N | LNE-3-4 (Locknut included) |
| Outer Ø (mm) | 38 |
| Product Datasheet |
 |
