Filter Cord Grip Selection

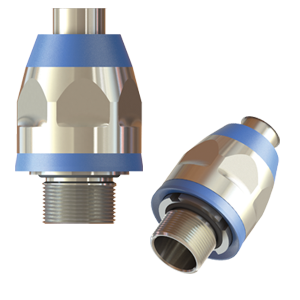

HCFM-20
Category: Hygienic Glands
| Type | Hygienic Conduit Fitting |
| Thread | M20x1.5 |
| Series | CG Clean Hygienic Conduit Fitting |
| Material | Nickel Plated Brass |
| Temp Range (Permanent) | -20°C to +100°C |
| Temp Range (Intermittent) | -40°C to +150°C |
| Protection Class | IP 65; IP 66 |
| Approvals | UL, NSF, CE |
| Wrenching Flats | 1.181 in (30 mm) |
| Thread Length | 0.512 in (13 mm) |
| Height (mm) | 39.5 |
| Locknut P/N | LMM-20 (Locknut included) |
| Outer Ø (inch) | 1.339 |
| Outer Ø (mm) | 34 |
| Inner Ø (inch) | 0.591 |
| Inner Ø (mm) | 15 |
| Product Datasheet |
 |
