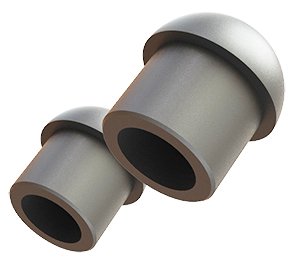

DPG-21
Category: Hole Plugs
| Type | Dome |
| Series | Dome Plug |
| Material | Polyamide 6 |
| Color | Gray |
| Temp Range (Permanent) | -20°C to +100°C |
| Temp Range (Intermittent) | -30°C to +150°C |
| Flammability | V2 (according to UL 94) |
| Height (mm) | 9.2 |
| Outer Ø (mm) | 31.5 |
| Diameter (mm) | 27.3 |
| Length | 15.8 |
| Fit into Clamping Range Standard Seal (dia. min - max) mm | 19.0 - 28.0 |
