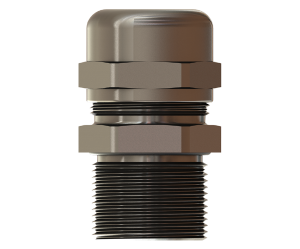

EXNM-2 1/2R
Category: Explosion Proof Cable Glands
| Type | EX d |
| Thread | NPT 2 1/2" |
| Series | EX 300 NPT |
| Description | EX 300 Nickel Plated Brass EX d glands, NPT 2 1/2" with reducer bushing |
| Material | Nickel Plated Brass |
| Temp Range (Permanent) | -40°C to +80°C |
| Approvals | UL, ATEX, IECEx, EAC, IN Metro, DNV |
| Clamping Range | 1.378 - 1.772 in. (35.0 - 45.0 mm) |
| Thread Diameter | 2.875 in. (73.03 mm) |
| Wrenching Flats | 2.52 in. (64 mm) Cap / 3.15 in. (80 mm) Body |
| Thread Length | 0.827 in. (21 mm) |
| Height (in) | 1.772 |
| Height (mm) | 45 |
