Filter Cord Grip Selection

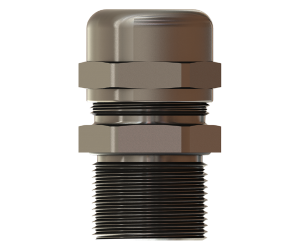

EXNM-1R
Category: Explosion Proof Cable Glands
| Type | EX d |
| Thread | NPT 1" |
| Series | EX 300 NPT |
| Description | EX 300 Nickel Plated Brass EX d glands, NPT 1" with reducer bushing |
| Material | Nickel Plated Brass |
| Temp Range (Permanent) | -40°C to +80°C |
| Approvals | UL, ATEX, IECEx, EAC, IN Metro, DNV |
| Clamping Range | 0.394 - 0.709 in. (10.0 - 18.0 mm) |
| Thread Diameter | 1.315 in. (33.4 mm) |
| Wrenching Flats | 1.102 in. (28 mm) Cap / 1.378 in. (35 mm) Body |
| Thread Length | 0.787 in. (20 mm) |
| Height (in) | 1.280 |
| Height (mm) | 32.5 |
| Product Datasheet |
 |
