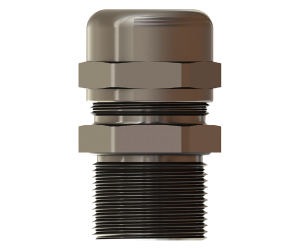

EXNM-1C
Category: Explosion Proof Cable Glands
| Type | EX d |
| Thread | NPT 1" |
| Series | EX 300 NPT |
| Description | EX 300 Nickel Plated Brass EX d glands, NPT 1" with larger clamping range |
| Material | Nickel Plated Brass |
| Temp Range (Permanent) | -40°C to +80°C |
| Approvals | UL, ATEX, IECEx, EAC, IN Metro, DNV |
| Clamping Range | 0.866 - 1.024 in. (22.0 - 26.0 mm) |
| Thread Diameter | 1.315 in. (33.4 mm) |
| Wrenching Flats | 1.772 in. (45 mm) Cap / 1.772 in. (45 mm) Body |
| Thread Length | 0.787 in. (20 mm) |
| Height (in) | 1.654 |
| Height (mm) | 42 |
