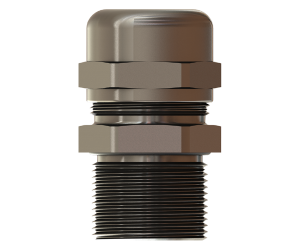

EXNM-1 1/4C
Category: Explosion Proof Cable Glands
| Type | EX d |
| Thread | NPT 1 1/4" |
| Series | EX 300 NPT |
| Description | EX 300 Nickel Plated Brass EX d glands, NPT 1 1/4" with larger clamping range |
| Material | Nickel Plated Brass |
| Temp Range (Permanent) | -40°C to +80°C |
| Approvals | UL, ATEX, IECEx, EAC, IN Metro, DNV |
| Clamping Range | 1.024 - 1.339 in. (26.0 - 34.0 mm) |
| Thread Diameter | 1.66 in. (42.16 mm) |
| Wrenching Flats | 1.969 in. (50 mm) Cap / 1.969 in. (50 mm) Body |
| Thread Length | 0.787 in. (20 mm) |
| Height (in) | 1.791 |
| Height (mm) | 45.5 |
| Product Datasheet |
 |
