Filter Cord Grip Selection

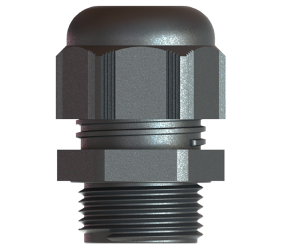

EXMP-20R
Category: Explosion Proof Cable Glands
| Type | EX e |
| Thread | M20X1.5 |
| Series | EX e 100 Metric |
| Description | EX 100 Polyamide 6 EX e dome cap glands, M20 with reducer bushing |
| Material | Polyamide 6 |
| Color | Black |
| Temp Range (Permanent) | -40°C to +80°C |
| Approvals | ATEX, IECEx, EAC, IN Metro, DNV |
| Clamping Range | 0.197 - 0.394 in. (5.0 - 10.0 mm) |
| Thread Diameter | 0.787 in. (20 mm) |
| Wrenching Flats | 0.866 in. (22 mm) Cap / 0.945 in. (24 mm) Body |
| Thread Length | 0.394 in. (10 mm) |
| Height (in) | 1.268 |
| Height (mm) | 32.2 |
