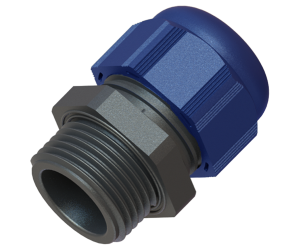

EXMI-40C
Category: Explosion Proof Cable Glands
| Type | EX i |
| Thread | M40X1.5 |
| Series | EX i 100 Metric |
| Description | EX 100 Polyamide 6 EX i dome cap glands, M40 with larger clamping range |
| Material | Polyamide 6 |
| Color | Black with Blue cap |
| Temp Range (Permanent) | -40°C to +80°C |
| Approvals | ATEX, IECEx, EAC, IN Metro, DNV |
| Clamping Range | 0.866 - 1.26 in. (22.0 - 32.0 mm) |
| Thread Diameter | 1.575 in. (40 mm) |
| Wrenching Flats | 2.087 in. (53 mm) Cap / 2.087 in. (53 mm) Body |
| Thread Length | 0.709 in. (18 mm) |
| Height (in) | 2.063 |
| Height (mm) | 52.4 |
