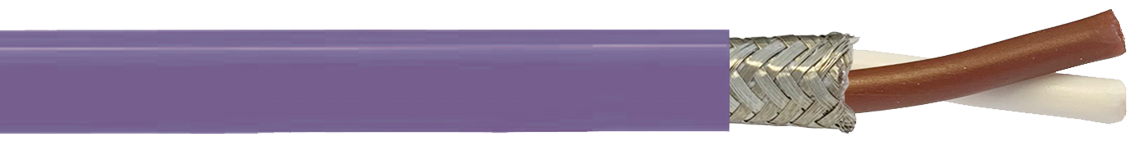

Part #: 06274751

Print
Type Bus and Ethernet Cables
Segment CANBus Cables
Series CB 627 Flexible PVC UL
Gauge/c 19 AWG (≈ 23/32)/2pr
mm2 0.75
Conductors bare copper fine strands
Color Code DIN 47100
Insulation PE
Shielding Tinned Braid Shield
Jacket Red Lilac PVC (RAL 4001)
Nominal OD 13.5 mm (0.531 in.)
Approvals UR AWM, CE, EAC, RoHS
Voltage 300
Temperature Range -30°C to +80°C
Oil Resistance very good acc. to VDE 0207-5
Burning Characteristics flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2
PDF View PDF For Complete Technical Specifications
Gray Polyamide Cord Grip PMG-25 (Metric); PPG-21R (PG); PNG-3/4R (NPT)
Black Polyamide Cord Grip PMB-25 (Metric); PPB-21R (PG); PNB-3/4R (NPT)
Metal Cord Grip MMS-25C (Metric); MPS-21 (PG); MNS-3/4 (NPT)
EMC-2 Shielding Cord Grip EM2-25C (Metric); EP2-21 (PG); EN2-3/4 (NPT)
EMC-4 Cord Grip EM4-25 (Metric); EP4-21 (PG); EN4-3/4 (NPT)
