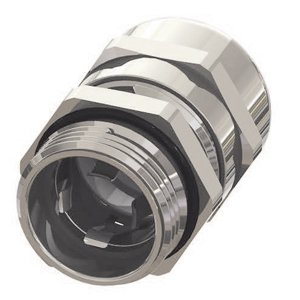

EP4-21
Category: EMC Grounding Glands
| Thread | PG 21 |
| Series | CG EMC-4 EMC Grounding Gland |
| Material | Nickel Plated Brass |
| Temp Range (Permanent) | -20°C to +100°C |
| Temp Range (Intermittent) | -40°C to +150°C |
| Protection Class | IP 68 - 5 Bar |
| Flammability | V2 (according to UL 94) |
| Approvals | DNV-GL, CE, RoHS |
| Clamping Range | 0.394 - 0.709 in. (10.0 - 18.0 mm) |
| Shield Diameter (in) | .276 - .551 |
| Shield Diameter (mm) | 7.0 - 14.0 |
| Thread Diameter | 1.114 in. (28.3 mm) |
| Wrenching Flats | 1.26 in. (32 mm) |
| Thread Length | 0.276 in. (7 mm) |
| Height (in) | 1.673 |
| Height (mm) | 42.5 |
| Locknut P/N | LPE-21 (Locknuts need to be purchased separately) |
| Torque Values | Torque Values for EMC-4 Grounding Glands |
| Installation Guide | EMC Installation Guide |
| Thread & Hole Sizes | Thread Diameters & Holes Sizes |
| Product Datasheet |
 |
| In Stock | Buy Now |
