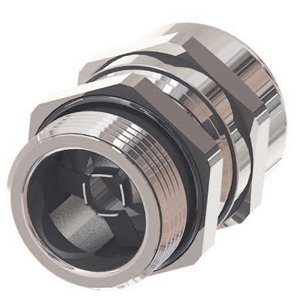

EM2-25C
Category: EMC Grounding Glands
| Thread | M25x1.5 |
| Series | CG EMC-2 EMC Grounding Gland |
| Material | Nickel Plated Brass |
| Temp Range (Permanent) | -20°C to +100°C |
| Temp Range (Intermittent) | -40°C to +150°C |
| Protection Class | IP 68 - 5 Bar |
| Flammability | V2 (according to UL 94) |
| Approvals | cULus, VDE, DNV-GL, CE, RoHS |
| Clamping Range | 0.512 - 0.709 in. (13.0 - 18.0 mm) |
| Shield Diameter (in) | 0.413 |
| Shield Diameter (mm) | 10.5 |
| Thread Diameter | 0.984 in. (25 mm) |
| Wrenching Flats | 1.181 in. (30 mm) |
| Thread Length | 0.315 in. (8 mm) |
| Height (in) | 1.476 |
| Height (mm) | 37.5 |
| Locknut P/N | LME-25 (Locknuts need to be purchased separately) |
| Torque Values | Torque Values for EMC-2 Grounding Glands |
| Installation Guide | EMC Installation Guide |
| Thread & Hole Sizes | Thread Diameters & Holes Sizes |
| Product Datasheet |
 |
