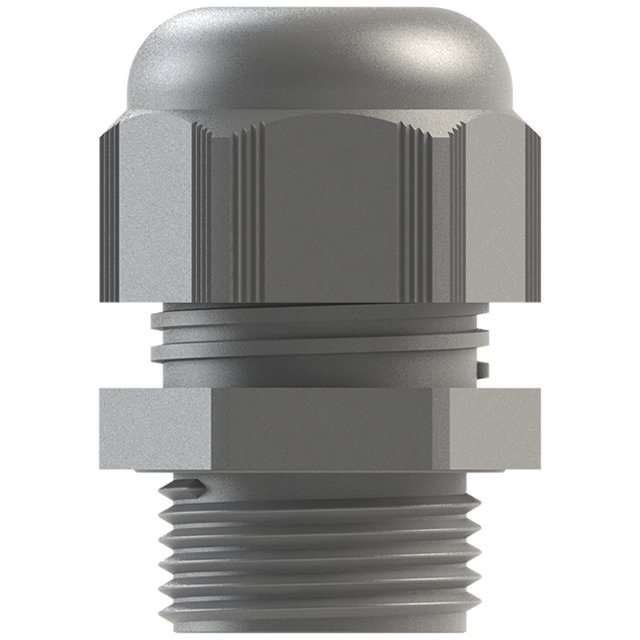

PPG-7R
Category: Plastic Cable Glands
| Thread | PG 7 |
| Series | CG 100 PG |
| Description | with reducer bushing |
| Material | Polyamide 6 |
| Color | Gray |
| Temp Range (Permanent) | -20°C to +100°C |
| Temp Range (Intermittent) | -30°C to +150°C |
| Protection Class | IP 68 - 5 Bar |
| Flammability | V2 (according to UL 94) |
| Approvals | cURus, cCSAus, DNV-GL, CE |
| Clamping Range | 0.079 - 0.197 in. (2.0 - 5.0 mm) |
| Thread Diameter | 0.492 in (12.5 mm) |
| Wrenching Flats | 0.591 in (15 mm) |
| Thread Length | 0.315 in (8 mm) |
| Height (in) | 0.866 |
| Locknut P/N | LPG-7 (Included) |
| Torque Values | Torque Values for Polyamide Glands |
| Thread & Hole Sizes | Thread Diameters & Holes Sizes |
| Product Datasheet |
 |
