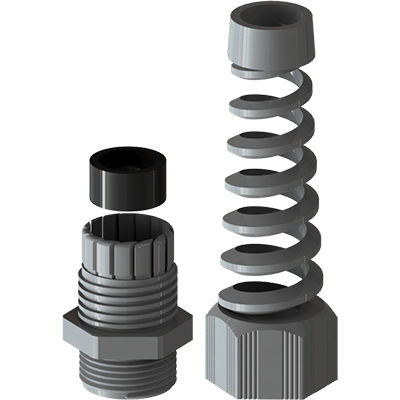

FNG-3/4R
Category: Spiral Cable Glands
| Thread | NPT 3/4" |
| Series | CG 200 NPT |
| Description | with reducer bushing |
| Material | Polyamide 6 |
| Color | Gray |
| Temp Range (Permanent) | -20°C to +100°C |
| Temp Range (Intermittent) | -30°C to +150°C |
| Protection Class | IP 68 - 5 Bar |
| Flammability | V2 (according to UL 94) |
| Approvals | cULus, cCSAus, DNV-GL, CE |
| Clamping Range | 0.354 - 0.630 in. (9.0 - 16.0 mm) |
| Thread Diameter | 1.05 in (1.05 mm) |
| Wrenching Flats | 1.299 in (33 mm) |
| Thread Length | 0.591 in (4.6 mm) |
| Locknut P/N | LNG-3-4 (Locknuts need to be purchased separately) |
| Torque Values | Torque Values for Polyamide Glands |
| Thread & Hole Sizes | Thread Diameters & Holes Sizes |
| Product Datasheet |
 |
